SR-440

Contract price

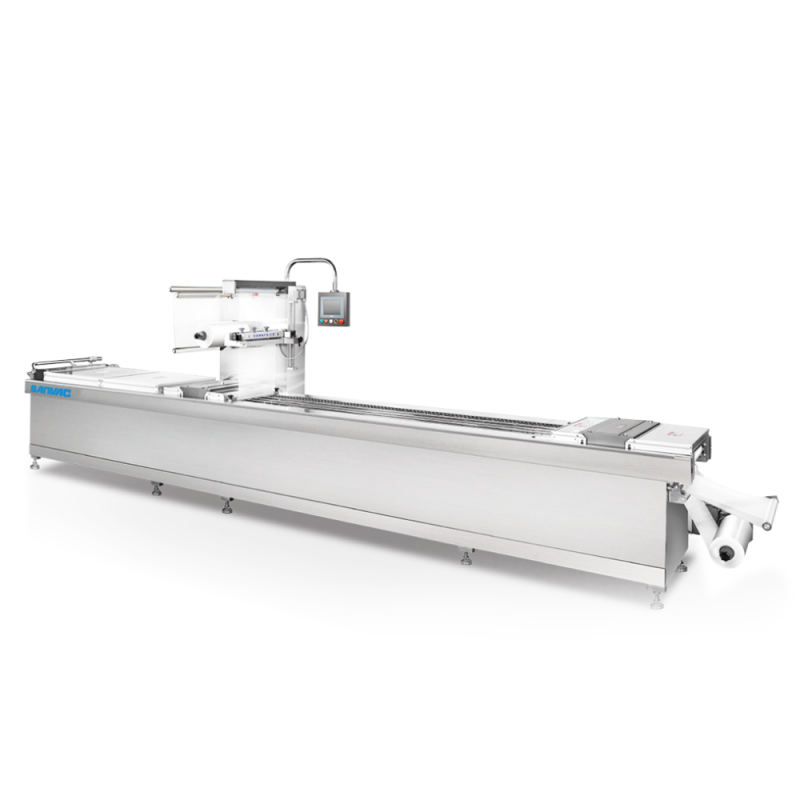

The largest model, “SR-440” is developed to respond to various requirements in maximum performance.

UPC:
EAN13:
New product
Sold By:
Packsko Co., Ltd
view_listView more products of this seller
Mark Seller as Favourite

Description

The largest model, “SR-440” is developed to respond to various requirements in maximum performance. It also can be equipped with our “Smart Multi-Labeler”. It is the best choice for mass-production line with readiness to answer to possible variation of your product assortment and design.
It also can perform liquid packaging and gas-filling of your designation.

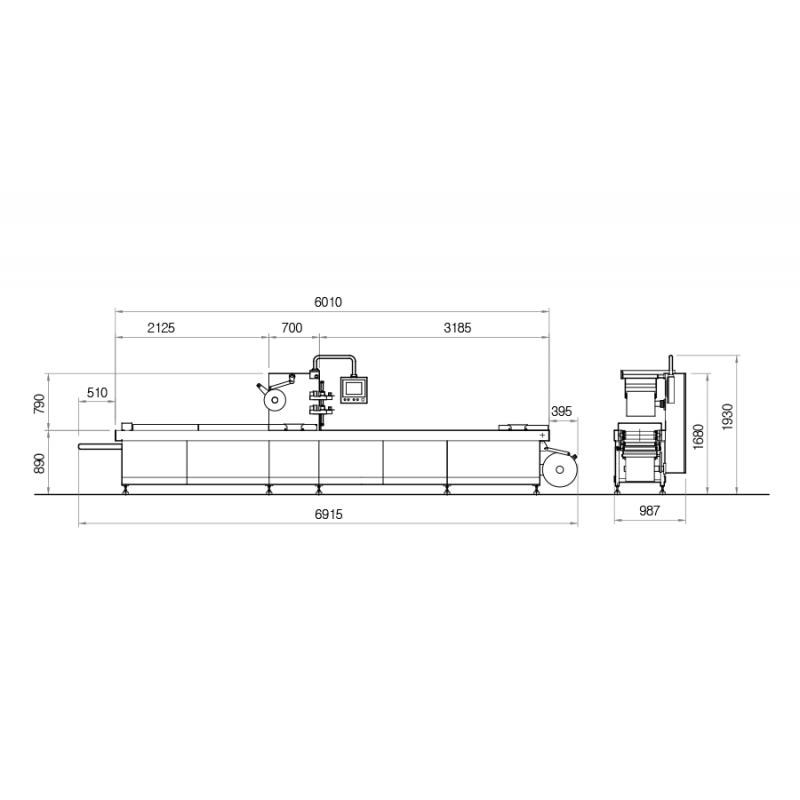

SR-440 Technical Data

Maximum Film Advance 550mm (Over 550mm is available as option)
Maximum Forming Depth 80mm / 100mm / 150mm (option)
Film Width 424 mm - 464 mm (Over 464 mm is available as option)
Loading Area It depends on die specification.
Control System PLC Control / Servo Motor
Electrical Voltage 220V /3P, 380V/ 4p, 50/60hz
Power Consumption 220V/25kW, 380V/23kW
Pneumatic Consumption 1,000 - 1,500 Liter / Minute, 7 bar
Water Consumption 100 - 150 Liter / Hour, 1 bar
Approximate Weight 1,000 kg - 1,500 kg
Packing Capacity 8 Cycle / 10 Cycle (In case of Booster pump installed)
