Conveyor belt KU and GRZK
Including support frame, fixed or on wheels; special 180 degrees curve with inside radius of 0mm; Stainless Steel execution; painted execution.

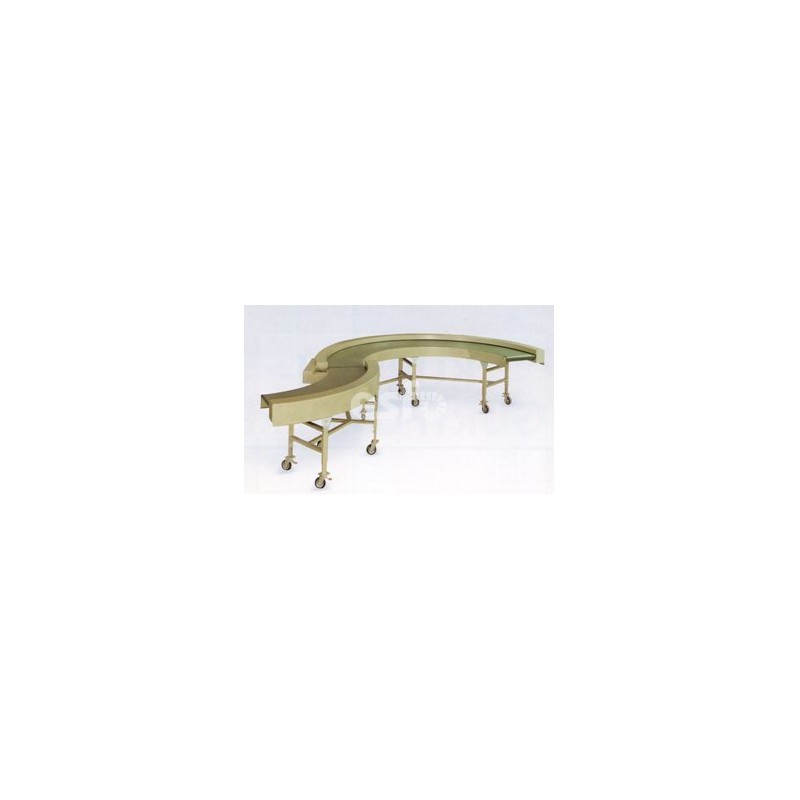

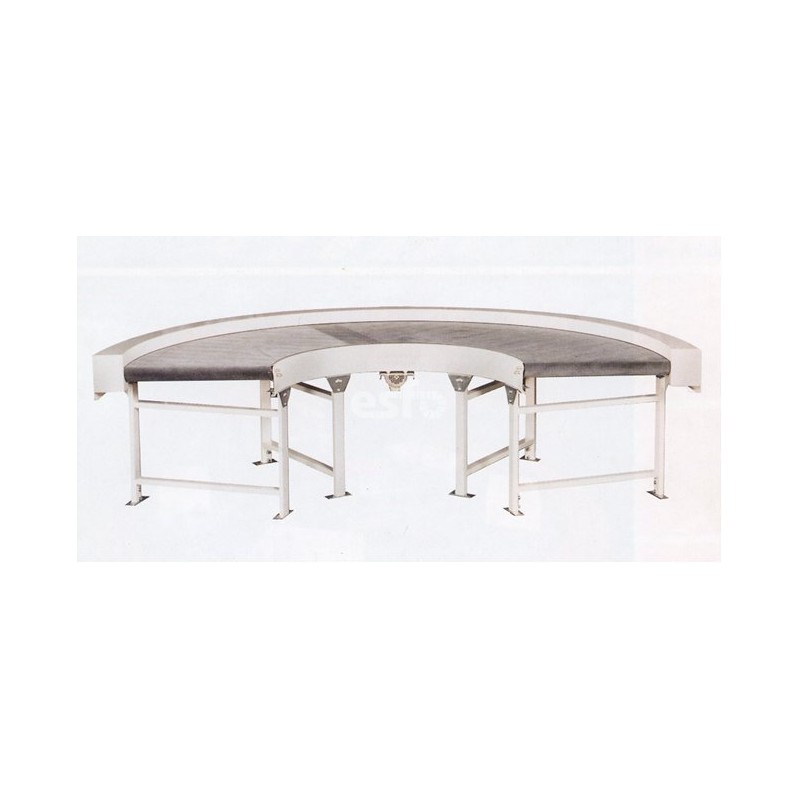

KU:
-Execution in stainless steel or painted.
-Transportation angles from 25° to 270°.
-Inside radius from 100 to 1500 mm.
-Patented driving by friction rollers.
-Easy belt tensioning.
-FDA approved plastic belting up to 1500 mm.
-8, 16, 22 or 47 mm cylindrical end rollers.
-Special execution for working in wet circumstances or for frequent starting and stopping
-Food recoursces approved.
-Belt guiding by symmetrical rollers mounted at both sides of the belt and a fixed guiding.
GRZK:
Stainless steel Enrober Belt with Mesh approx. 10 mm pitch by inside radius and up to 19 mm at outside, wire diameter 1.8 mm 90 degrees Curve Conveyor. Stainless Steel open structure Frame Work. Any height may be specified.
Various conveyor angles are possible.
Supplied as standard with motor drive.
Belt speeds available from 3 to 11 metre per minute at inside radiusAlso to be equiped with frequency Controller.
Free rotating end transfers rollers diam. 40 mm .Drive shaft sprockets in high density polyethylene or Stainless Steel.
