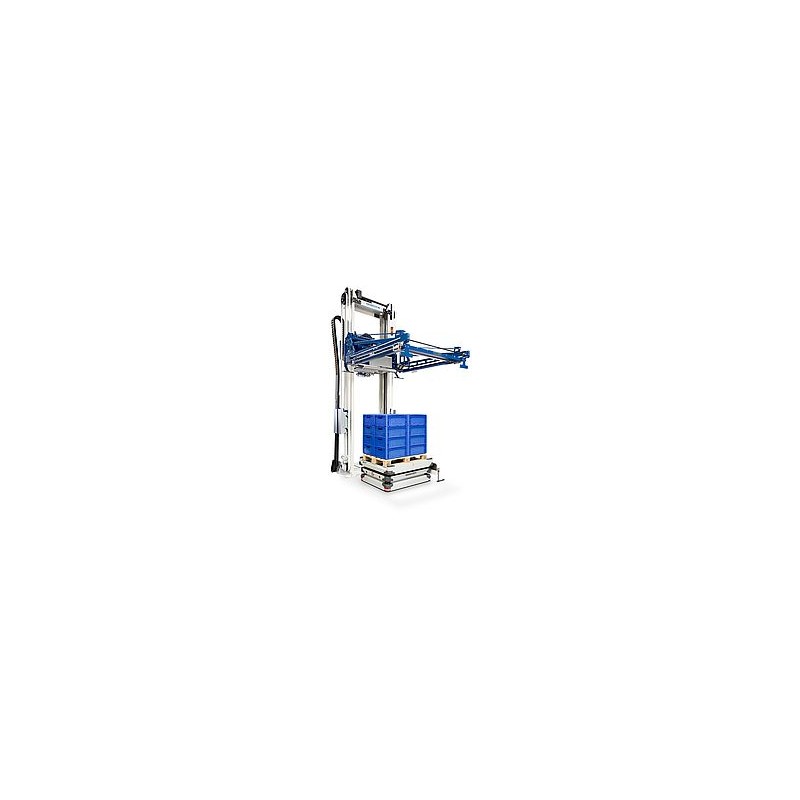

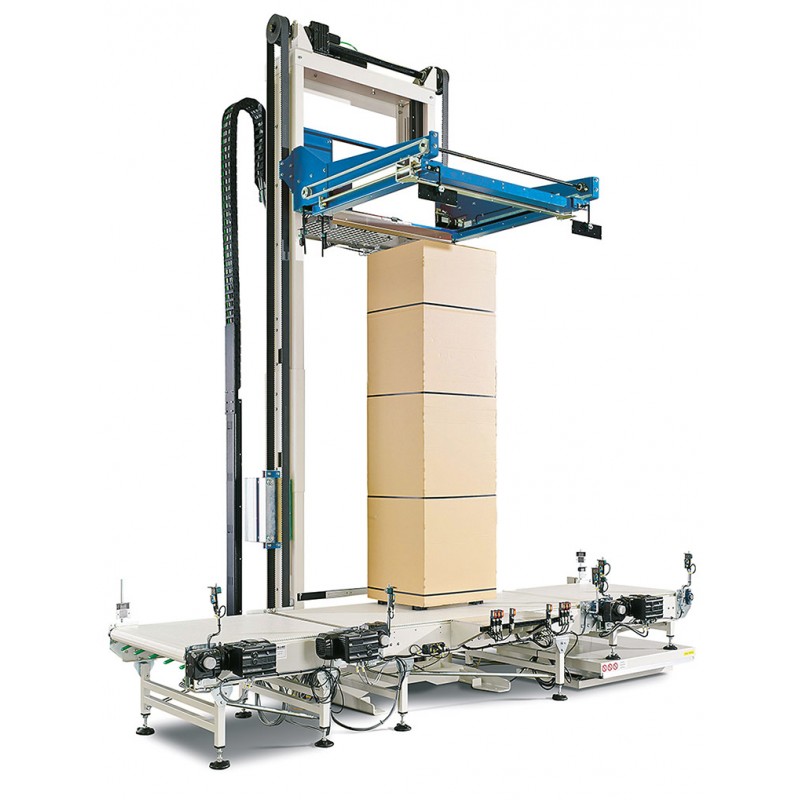

EVOLUTION SoniXs MS-6 H

Contract price

Fully Automatic Horizontal Strapping Machine

Referência:
EVOLUTION SoniXs MS-6 H
UPC:
EAN13:
Quantidade
Login to request
Vendido por:
MOSCA GmbH
view_listVer mais produtos deste vendedor
Mark Vendedor como Favorito

Descrição

  • Can be integrated into most production lines
  • SoniXs ultrasonic sealing system with electronic self-calibration
  • High sealing tension due to a minimum distance from package to sealing unit
  • Programmable control with panel inclusive manual control with functional sequence of strapping control
  • Potential-free contacts to upstream and downstream equipment
  • Infinitely adjustable strap tension via touch panel
  • Low-wear, controlled strap path system
  • Automatic strap loop ejection when machine cycles without bundle
  • Stroke of strap guide frame via belt drive
  • Automatic strap threading
  • Strap end detection with ejection of remaining strap
  • Wear-free DC drive, brushless motor technology
  • 10 freely configurable programs with up to 10 strapping positions

Options:

    VERTICAL EDGE PROTECTION APPLICATOR

    Vertical edge protection applicator

    Fully automatic strap coil change by double strap dispenser

    Three-part signal light including low strap detection

    PET dispenser (core ∅ 406 mm)

    Electric strap holding device

    Horizontal frame stroke up to 350 mm

    Data interface

    Safety guards

    Muting system

    Conveyor technique

    Structural color according to RAL-scale



    Package Dimensions:



    Frame Sizes (mm)            Package Sizes (mm)

       L        W                                L       W

    1000 x 1000                    max.   800 x   800

    1400 x 1000                    max. 1200 x   800

    1400 x 1400                    max. 1200 x 1200

    1600 x 1600                    max. 1400 x 1400



    Height incl. pallet:             max. 3000 mm



    Performance:

    Up to 280 packages/h without product transportation, frame size of 1400 x 1400, 2000 mm product height, twofold strapped (High Speed)



    High speed frame movement (vertical) 1 m/s

    High speed frame movement (vertical + horizontal) 1 m/s and 0.35 m/s



    Straps:

    Standard machine PP straps:

    Width:           5 - 12 mm

    Thickness:    0.4 - 0.8 mm



    PET straps: (optional)

    Width:           9.5 and 12 mm

    Thickness:    0.54 mm



    Strap coil dispenser:

    Core diameter:  200 mm (optional 406 mm PET)

    Core width:       190 mm (optional 150 mm PET)



    Electricity:

    Voltage: 400 V, 50/60 Hz, 3 PH

    Power consumption: approx. 3.5 kW



    Sealing Unit:

    SoniXs ultrasonic sealing unit



You can watch the video about this machine using this link
