Packaging machine R10 S&D

Contract price

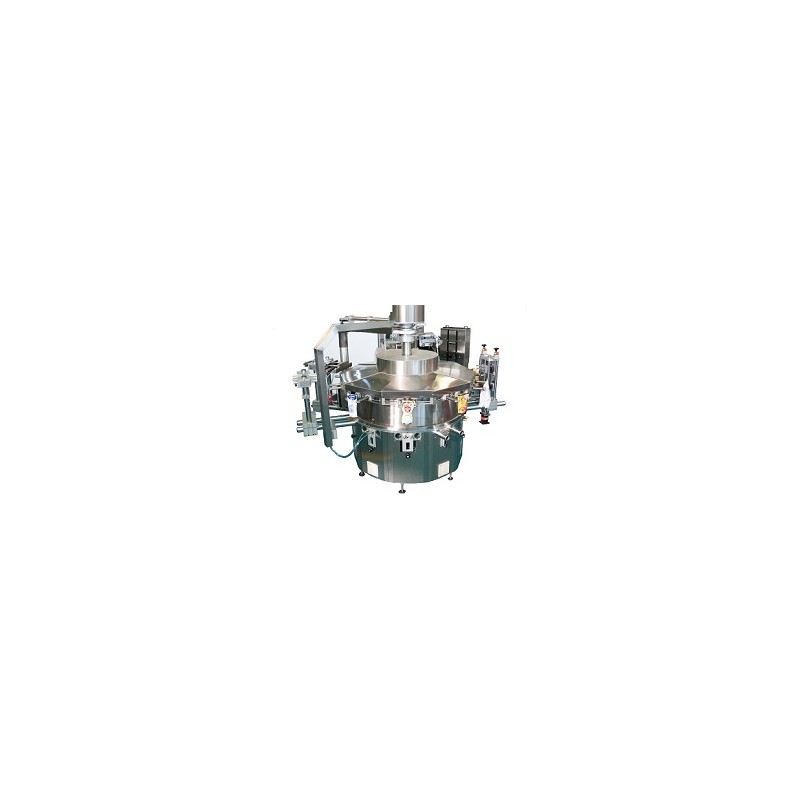

The R10 S&D is a rotary carousel packaging machine with 10 stations for preformed bags

UPC:
EAN13:
Quantidade
Login to request
Vendido por:
TS PACKAGING
view_listVer mais produtos deste vendedor
Mark Vendedor como Favorito

Descrição

The R10 S&D is a rotary carousel packaging machine with 10 stations for preformed bags; it can work with any type of envelope and with any type of material combination. Thanks to the action of pneumatically controlled pliers, the bag is never left until it is unloaded. The 10 stations can be equipped for different applications, such as inert gas injection, vacuum, ultrasonic welding, double insertion of accessories (before or after filling), die-cutting machines and different types of dosing. The machine is equipped with automatic gearbox facilitated directly from the control panel.

Envelope
Type Pouch Type

Stand-up, flat, shaped, bellows,
with central and lateral valve
Stand-up, flat, shaped , gusset,
corner or top-spouted

 Envelope
material Pouch materials 		 Materials heat sealable
Thermosealing materials
Envelope dimensions, width
Pouch dimensions, height		 60-320 mm Electricity
Power		 400 V 3 PH + N + T- 50/60 HZ
Envelope
dimensions, Pouch dimensions, height		 100-400 mm Absorption
Electricty consumption		 10 Kw

Theoretical productivity per minute Mech
anic output pouches per minute

 60 ppm simplex *
120 ppm duplex *		 Operating
pressure Air pressure		 6 bar
Dosing points Dosing
unit		 Up to 5
Up To 5		 Air consumption
Air consumption per min.		 500 NL / MIN
Filling volume
Filling volume		 Up to 5000 ml *
Up to 5000 ml *		 Sound level
Noise Level
Touch screen Yes
Yes		 Machine weight
Machine weight		 3500 kg
Inert
gas injection Inhert gas injection		 Optional
Optional

Machine's dimensions

4230mm x 3840mm x 2100mm **
Matchable dosing
system		 Multihead scale, auger filler, cup filler, volumetric
filler Multihead Weigher, Auger filler,
Cap Filler, Volumetric Filler
* Subject to approval of our technical department ~ Subjet to the approval of our technical department
** Variable according to specific configuration ~  May change according to specific project
Specifications subject to change without notice ~  specifications are subject to change without notice
