SPK 4000P
  • SPK 4000P
  • SPK 4000P
  • Novo

SPK 4000P

Contract price

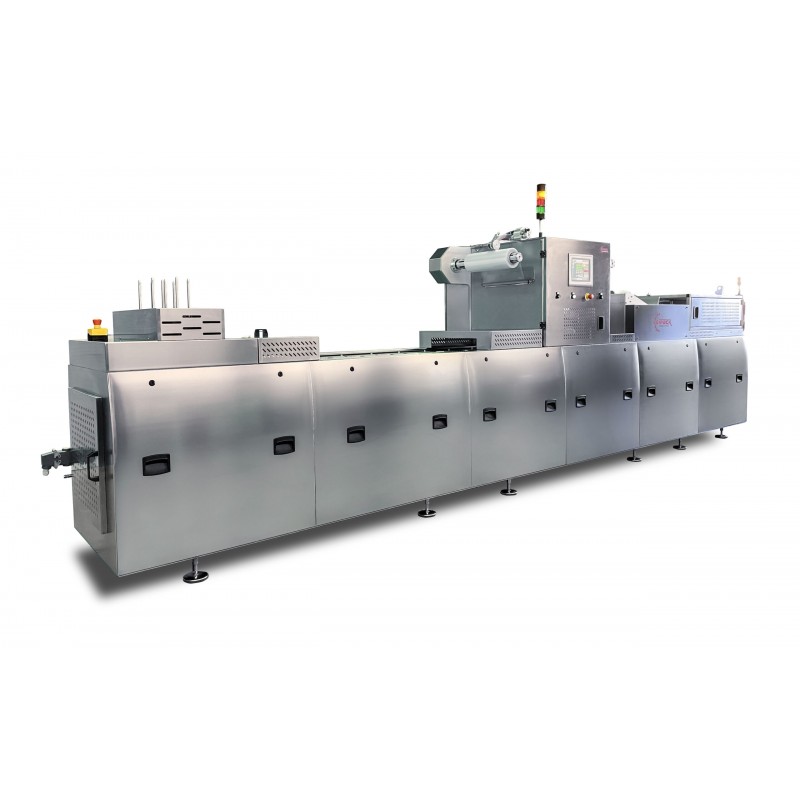

SPK 4000P is a fully automatic linear machine with infeed belt made by AISI 304 stainless steel pallets.

Referência:
SPK 4000P
UPC:
EAN13:
Novo produto
Quantidade
Login to request
Vendido por:
Sipack
view_listVer mais produtos deste vendedor
Mark Vendedor como Favorito

Descrição

SPK 4000P is a fully automatic linear machine with infeed belt made by AISI 304 stainless steel pallets. Suitable for high volume productions of small/medium-sized trays. Additional option stations are available to enhance productivity.

KEY FEATURES

  • Dedicated to high productions;
  • Pallet transfer;
  • Plastic or recyclable trays;
  • All types of welds;
  • High precision dosing;
  • Ideal for small and medium trays.

SPK 4000P sealing technologies

  • Vacuum system
  • Hermetic Shrink
  • Skin Pack
  • Atmospheric Seal

Ideal for these industries:

  • Ready meals
  • Produce
  • Desserts
  • Cheese
  • Snacks
  • Cosmetics

Data Sheet

Machine dimension: 500x140x190 CM/H (based)
Machine weight: ca 1200
Electrical power supply: 7-8 kw, 380-400V 50Hz
PMachine cycles: 12-18 cycles Min
Cavity number: 1-2-3-4-5 (based on tray size)
Width top web for trays: Min 200 Max 500 mm
Diameter top web for trays: Max 290 mm
Tray advancement system: High precision Brushless
Chain index: Min 154 Max 228.6mm
Tray height: Min 25 Max 130 mm
Overall Construction: Stainless steel 304-316 and aluminium
PLC: Siemens S7-1200 SAFETY

Optional

  • De-nester tray
  • Automatic dosing liquids
  • Automatic out-feed conveyor
  • Variable tray loading area
  • Dosing Volumetric unit
  • Lidding system
  • Weight control with load cells
  • HMI Siemens 7in TFT widescreen, LED Backlighting
  • HMI Siemens 9-12-15 inches (Optional)
